Future

Platform for various and diverse applications
Positioning of the horizontal rails in 10 mm increments
Dual mounting for Rear-I/O applications possible
Different shielding concepts
High configuration level and wide selection of accessories
"Vibration resistant" version: LES-DB of Deutsche Bahn compliant
"IEEE" version: Front rail(s) with pitch hole pattern, according to IEEE 1101.10
Three-dimensional size-adjustable

Customized adaptions are possible

Platform for various and diverse applications
Positioning of the horizontal rails in 10 mm increments
Dual mounting for rear I/O applications possible
Different shielding concepts
High configuration level and wide selection of accessories
"Vibration resistant" version: LES-DB of Deutsche Bahn compliant
"IEEE" version: Front rail(s) with pitch hole pattern, according to IEEE 1101.10
Three-dimensional size-adjustable

Customized adaptations are possible

Base for diverse applications
Positionnement des profilés au pas de 10 mm
Mounting DUAL pour applications Rear-I/O possible
Pour des blindages variés
Nombreux accessoires et possibilité d'architecture
Conception " résistante aux chocs ": conforme à la norme LES-DB de la Deutsche Bahn
Conception " IEEE ": profilé(s) avant pourvus de trous selon IEEE 1101.10
Dimensions sont modifiables tridimensionnel

Adaptations propres au client sont possible

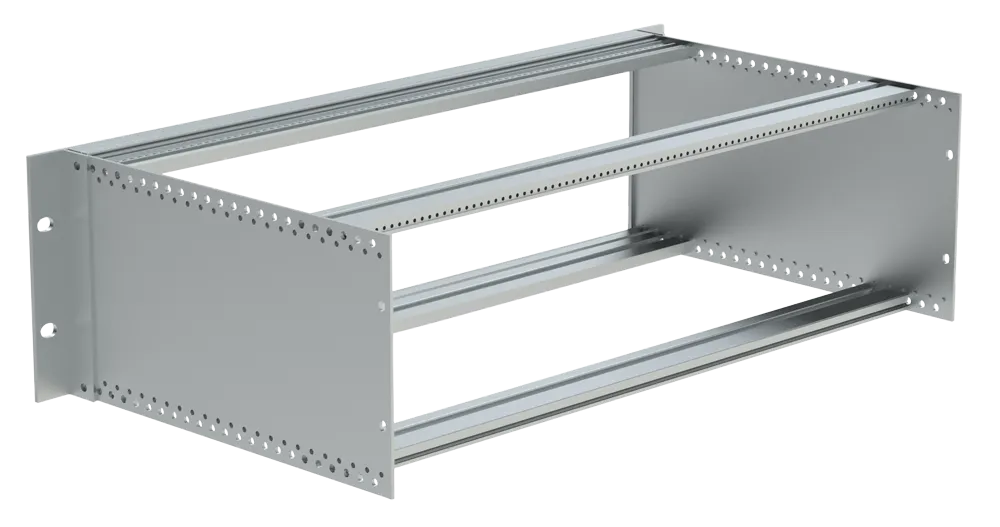

All subracks of the Future series impress with their large adaption range for all kinds of applications. The high variability for different kinds of dimensions, the technical features with different shielding concepts, the design for use in simple as well as robust environments and the design possibilities through a large number of accessories, guarantee suitability of the product series in all applications. The outstanding services are used in all industries and are characterized by their high level of acceptance in a variety of ways. The subrack series Future supports any solution starting from a light weigth version all the way towards harsh industrial environments (vibration resistant). Designed for different shielding concepts and applications and individually adaptable. The fixation of the rugged horizontal rails with two screws as well as the tox joined version of the side plates allows the use of the subrack in harsh environments (shock and vibration resistance). The positioning of the rails in the 10 mm increments permits dual mounting.



Open 3D view in new window

Dimensions

Width

84 HP

Height

3, 4, 6 U

Depth

180, 244, 278, 304, 364 mm

Surface

Aluminium parts are generally clear alodined SurTEC 650 (optionally anodised)
Threaded inserts zinc-plated steel (copper optionally)
Plastic parts UL 94 V0 in general
ABS: UL 94 V0
PC: NF F 16-101/102 Class F1, F2
PBT: UL 94 V0
PPO: UL 94 V0

Norms / Standards

Mounting dimensions in accordance with IEC 60297-3-100
Inner and outer dimensions according to IEC 60297-3-101, 60297-3-102, 60297-3-103
LES-DB of Deutsche Bahn compliant
Optional front rail for IEEE 1101.10 conform configurations
Optional card guides: DIN EN 45545 compliant
IP20 rating in accordance with IEC 60529
ESD/EMC/RFI compliant upgrade is possible
Vibration resistant application upon request
