PSB 2.16

  • Based on the CPCI backplane, enhanced with a Gigabit Ethernet Link
  • Special height of 6 U
  • For the Gigabit link single or dual star topologies are available
  • CompactPCI peripheral slots, 64 bit with rear I/O on P3, P4 and P5
  • V (I/O) adjustable to 3.3 V or + 5 V

Customized adaptions are possible

  • Based on the CPCI backplane, enhanced with a Gigabit Ethernet Link
  • Special height of 6 U
  • For the Gigabit link single or dual star topologies are available
  • Data size: 32, 64 bit
  • System slot: right

Customized adaptations are possible

  • Sur la base du bus fond de panier CPCI, configuré avec un Gigabit Ethernet Link
  • Hauteur spéciale : 6,5 U
  • Topology: Single Star ou dual star
  • Slot système : à droite
  • Emplacement périphérique, 64 bits avec Rear-I/O sur P3, P4 et P5
  • V (I/O) réglable à 3,3 V ou + 5 V

Adaptations propres au client sont possible

Description

3D view

Details

Download

Support request

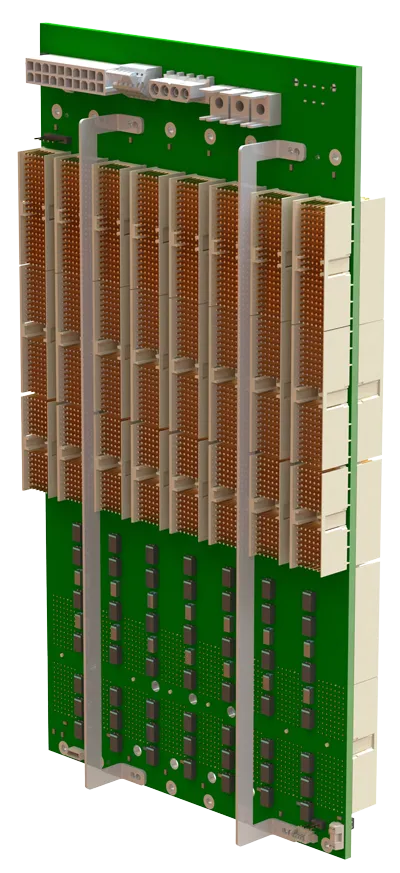

The PSB 2.16 backplane is based on the PICMG backplane. The VITA 31.1 has simply been enhanced with a Gigabit Ethernet Link.

This leads to a PICMG 2.16 Gigabit Ethernet Switch (Fabric) which connects the links (nodes) with one another. This can also be connected to the front panel with an RJ45 connector, if needed.

Open 3D view in new window
Dimensions

Height

  • 6, 5 U
Slots
  • max. 8 without bridge-slot
Data size
  • 64 bit
Number of layers
  • Single Star: 10
  • Dual Star: 14
PC board thickness
  • Single Star: 3.2 mm
  • Dual Star: 4.7 mm
Norms / Standards
  • PICMG-Spezifikation 2.0 R3.0 Core Spezifikation
  • 2.1 R2.0 Hot Swap Spezifikation
  • 2.9 R1.0 System Management Spezifikation
  • 2.16 R1.0 Packet Switching Backplane Specification
  • JTAG-Interface
  • Connector class 2
  • Power connections M4, ATX and HDD connectors

General overview

Download

General overview

Download

General overview

Download

General overview

Download

General overview

Download

General overview

Download

download portal

Download portal folder
